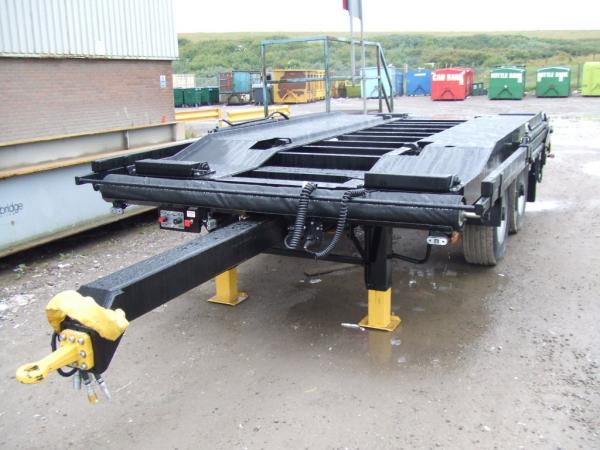

• Frame:                           Steel chassis, with rear under run bar and option of retractable drawbar beam.
  • Axles:                             Tandem Low-Loader axles.
  • Brakes:                         2-line air with drum brakes.
  • Tyres:                             245/70R17.5 tyres (singles)
  • Suspension:           Air Suspension with  €˜raise & lower €™ valve.
  • Coupling:                 50 mm or 57.5 mm bolt-on drawbar eye
  • Body:                             The trailer design allows a refuse container to be loaded and unloaded on its main longitudinal members. The refuse containers must be manufactured to  €˜CHEM. €™ STANDARDS TYPE T.S.13 and must have approx.75mm height clearance on the outside of the main longitudinal members TO ALLOW SAFE TRANSFER. Any rear cross beam must also allow this clearance. Pneumatically operated DOUBLE-ACTING locks are employed to secure the refuse bins for travelling.
